    # Reliable Point Cloud QA and Organization for Scan to BIM

    TL;DR

    • A disorganized point cloud leads directly to modeling errors, project delays, and budget overruns.
    • Establish a strict file and folder taxonomy before the first scan is captured.
    • Use indexed point cloud formats (RCP/RCS) and split large projects by level or zone to maintain performance in Revit.
    • Enforce a single, shared coordinate system across all project data to prevent misalignment.
    • Implement a multi-step QA process that includes reviewing the registration report, visual inspection, and completeness checks.

    Jump to: What is a "well-organized" point cloud? · Why does point cloud disorganization lead to Scan to BIM errors? · How should a point cloud data package be structured? · What is the role of coordinate systems in data management? · How should large point clouds be split for optimal performance? · What are best practices for point cloud version control? · What does a comprehensive point cloud QA checklist include? · How is point cloud accuracy verified without re-running registration? · What should be in the final Scan to BIM handover documentation? · Where to go next

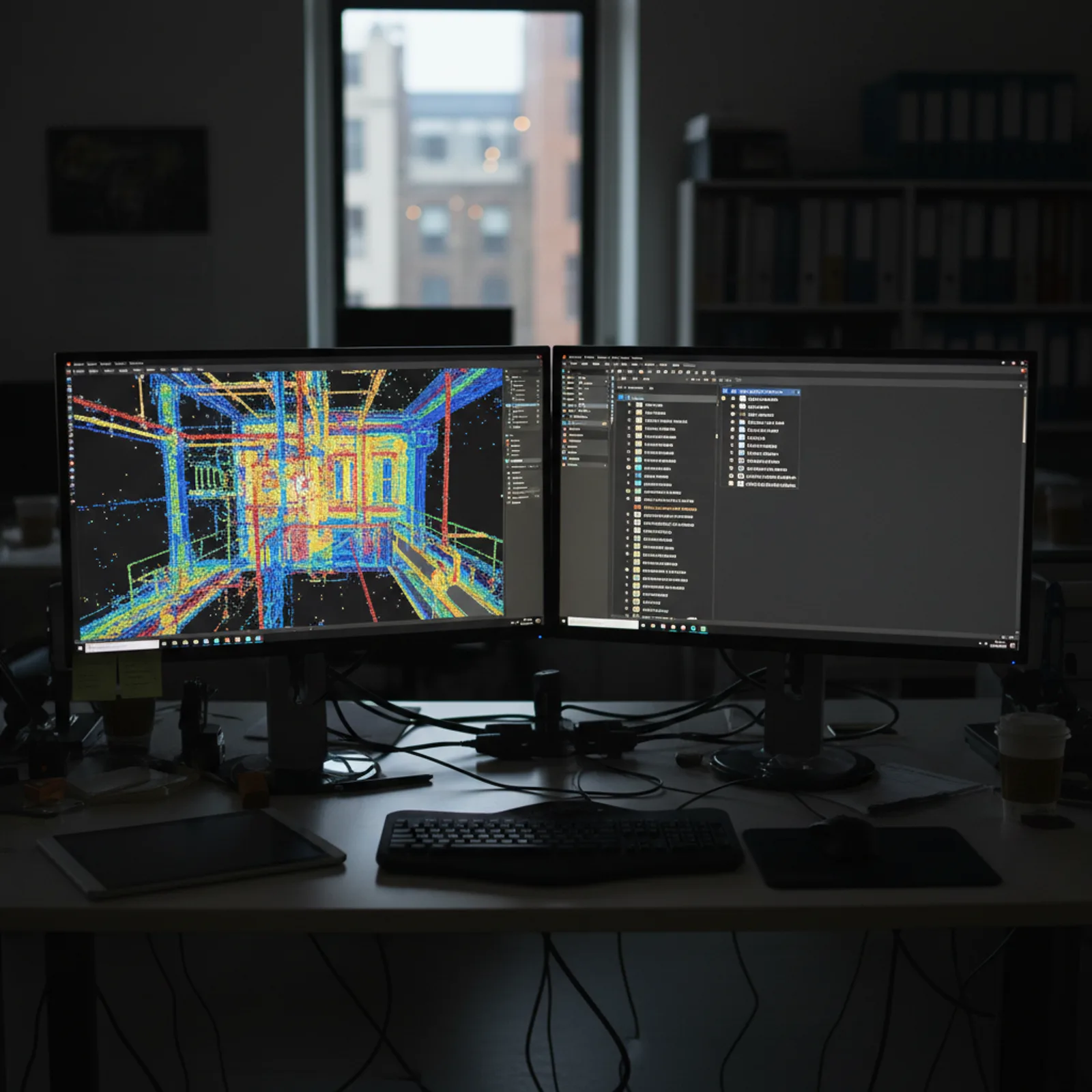

    A point cloud of a complex industrial facility displayed in software, showing millions of colored data points forming the structure.
    A cleanly registered and indexed point cloud is a prerequisite for accurate BIM modeling, especially in complex MEP environments.

    This guide is for architects, engineers, and VDC managers who rely on Scan to BIM deliverables. It provides a framework for managing point cloud data to prevent the common pitfalls that compromise project schedules and budgets. Following these principles for organization and quality assurance helps ensure the point cloud you receive is an asset, not a liability.

    The transition from a raw collection of laser scans to a usable as-built model is fraught with technical risk. Without a robust system for data management, even the most precise scans can become a source of error. This article outlines the key steps to maintain control over point cloud data, from initial file structure and naming conventions to final handover and version control across design phases.

    What is a "well-organized" point cloud?

    A well-organized point cloud is defined by its usability and predictability. It is not merely a single, massive data file. Instead, it is a structured package of information that is easy to navigate, load, and understand. Key attributes include a logical folder structure, a clear and consistent naming convention for all files, and proper documentation.

    Critically, organization begins before data capture. The 3D laser scanning scope of work should specify how the data will be segmented and delivered. This includes defining how the project will be broken down—by floor level, by building wing, or by discipline-specific zones (e.g., structural, MEP). The data should be delivered in an indexed format, such as Autodesk's RCP/RCS, which allows BIM software like Revit to handle massive datasets efficiently by loading only the visible portions. Finally, the entire dataset must be anchored to a single, stable coordinate system that is documented and shared with all project stakeholders.

    Why does point cloud disorganization lead to Scan to BIM errors?

    Disorganization transforms a valuable dataset into a significant project risk. The consequences manifest directly within the design environment, primarily in Revit. When a point cloud is delivered as one enormous, unstructured file, workstation performance grinds to a halt. Architects and engineers spend valuable time waiting for views to regenerate or for the file to simply open, if it does not crash the system entirely. This cripples productivity and leads to frustration.

    Worse than poor performance are the modeling errors that stem from data mismanagement. If different sections of a point cloud are registered to different or unknown coordinate systems, they will not align correctly when imported into a master Revit model. This results in building sections that are shifted or rotated relative to one another, making it impossible to model continuous elements like corridors, structural beams, or long MEP runs. The design risks of inaccurate as-built documentation are amplified, as designers may unknowingly model from misaligned scan data, embedding critical errors into the BIM that will later surface as costly change orders during construction.

    How should a point cloud data package be structured?

    A professional Scan to BIM provider will deliver a data package that is immediately usable and easy to archive. A disciplined folder structure is the foundation of this system. A typical, well-organized project directory should contain separate folders for raw data, processed data, project reports, and final deliverables.

    • `PROJ-NAME_YYYY-MM-DD_RAW-DATA/`: Contains the original, unprocessed scan files from the hardware (e.g., NavVis VLX3 mobile data or files from terrestrial scanners). This folder is for archival and verification purposes.
    • `PROJ-NAME_YYYY-MM-DD_PROCESSED-DATA/`: Houses the registered and unified point cloud. This will often include a master E57 file, which is an open-source, vendor-neutral format ideal for long-term archiving, as well as the structured RCP/RCS files for use in Autodesk software.
    • `PROJ-NAME_YYYY-MM-DD_REPORTS/`: This folder is critical for QA. It must contain the registration report, which details the statistical accuracy of the scan alignment (e.g., ±5mm), and a control report showing how the project's coordinate system was established.
    • `PROJ-NAME_YYYY-MM-DD_DELIVERABLES/`: Holds the final output, such as the LOD 200–350 Revit model, 2D CAD exports, or other specified outputs.

    File naming conventions must be equally rigorous. A good convention includes the project identifier, content description (e.g., Level-01, Zone-A-MEP), date, and version number. For example, ProjectX_L01_PointCloud_v1.1.rcp is far more useful than scan_final_new.rcp. This discipline prevents confusion and ensures team members are always working with the correct data. Details on various point cloud file formats like E57, RCP, LAS, and PTS can help in specifying the correct deliverables.

    What is the role of coordinate systems in data management?

    The coordinate system is the single most important element for ensuring spatial consistency across an entire project. All data—from every scan setup, every building level, and every external consultant—must align to one shared origin point. When a provider captures a large facility, they establish a control network of fixed targets throughout the site. The 3D position of these targets is precisely measured, and all scans are registered to this network.

    This process ensures that when the point cloud for Level 1 and the point cloud for Level 2 are loaded into Revit, they stack vertically and horizontally with precision. Without this shared coordinate system, the data for each level would exist in its own "local" space. A designer attempting to align them manually would be engaging in guesswork, completely negating the accuracy of the laser scan. The project's BIM Execution Plan (BEP) must define the shared coordinate system to be used, and the scanning provider must confirm in their report that all deliverables are aligned to it. This discipline is essential for any project, from a single building to a multi-acre university campus 3D scanning project.

    How should large point clouds be split for optimal performance?

    Attempting to work with a single point cloud for a large facility, such as an 80,000–120,000 sq ft industrial plant or hospital, is impractical. Even with powerful workstations, the data load is too great for design software to handle efficiently. The solution is to strategically split the point cloud into smaller, manageable chunks based on the project's physical and logical divisions.

    The most common method is splitting by building level. The provider delivers a separate, registered point cloud file for each floor (e.g., ProjectX_L01.rcp, ProjectX_L02.rcp). All files still share the same coordinate system, so they will align perfectly when linked into Revit. For very large floor plates, further subdivision by zone or structural grid may be necessary (e.g., ProjectX_L01_ZoneA.rcp, ProjectX_L01_ZoneB.rcp). This allows design teams to load only the specific area they are working on, dramatically improving software performance and workflow efficiency. This approach is standard practice for scanning large projects effectively.

    What are best practices for point cloud version control?

    In long-duration projects, conditions on site can change. Renovations may occur in phases, new equipment may be installed, or further as-built information may be required for areas that were previously inaccessible. This often necessitates additional scanning. Without a strict version control system, new data can get mixed with old, leading to confusion and errors.

    The best practice is to treat point cloud data like any other design document, with clear versioning. Each new scan delivery should be given a new version number or dated folder. A simple naming convention is effective:

    • ProjectX_ScanData_v1.0_2024-01-15/ (Initial scan)
    • ProjectX_ScanData_v2.0_2024-06-20/ (Scan of new MEP installation)

    A master document or README file in the project root directory should log the changes between versions, explaining what new data was added or what existing data was superseded. It is critical that the entire project team is notified when a new dataset is issued and instructed to archive the old version. This prevents a designer from accidentally continuing work based on outdated as-built conditions, which can lead to significant design rework caused by inaccurate as-builts.

    What does a comprehensive point cloud QA checklist include?

    Upon receiving a point cloud deliverable, the AEC team should not assume it is perfect. A systematic QA check is necessary to validate the data before it is used for design and modeling. This check does not need to be complex, but it must be methodical. While this guide focuses on the critical topic of point cloud organization and includes elements of a solid QA process, it is important to note that the mathematical process of point cloud registration is a distinct discipline that underpins initial data accuracy. The checklist below focuses on verifying the final, delivered product.

    QA CheckPurposeMethodCommon Failure Indicator
    Registration Report ReviewTo verify the statistical accuracy of the scan alignment meets project requirements.Review the PDF report for the final registration error (RMSE). Confirm it is within the specified tolerance (e.g., ±5mm).High registration error values; missing report.
    Coordinate System CheckTo ensure all cloud segments align to the single, shared project coordinate system.Load multiple split cloud files (e.g., Level 1 and Level 2) into a blank Revit project. Check for alignment.Visible offsets or rotation between building levels.
    Visual CompletenessTo confirm that all areas defined in the scope of work have been captured.Visually "walk through" the point cloud in software, comparing coverage against the SOW floor plans.Obvious holes in the data, missing rooms, or un-scanned areas.
    Noise and Artifact CheckTo identify and flag excessive noise from reflective surfaces or moving objects.Look for "ghosted" objects, noisy data around glass/metal, or stray points floating in space.Smearing, ghost images of people, or excessive data "fuzz".
    Data Density ReviewTo ensure the point cloud is dense enough for modeling at the required LOD.Zoom in on key features (e.g., beam flanges, pipe connections). Check if edges are clear and defined.Blurry or indistinct geometry that is difficult to model from.

    How is point cloud accuracy verified without re-running registration?

    AEC firms are not expected to re-process or re-register raw scan data. The responsibility for proving accuracy lies with the scanning provider. This verification is accomplished primarily through documentation. The cornerstone is the registration report. This document, generated by specialized software like NavVis IVION or Trimble RealWorks, provides a detailed statistical analysis of how well all the individual scans were aligned. It will state the final root mean square error (RMSE) or average point-to-point distance between overlapping scans. For projects requiring high precision, this value should be low, typically within the ±5mm range ZEALOT provides.

    Beyond the report, firms can perform simple "spot checks." Using the measurement tool within Revit or a point cloud viewer, measure the distance between two easily identifiable, static points in the cloud (e.g., two columns, corners of a room). Compare this to the same measurement on existing drawings or, if possible, a field measurement. Consistent discrepancies may indicate a scaling or registration issue. These checks, combined with a thorough review of the registration report, provide confidence in the dataset's accuracy as defined by standards like USIBD Level of Accuracy (LOA).

    What should be in the final Scan to BIM handover documentation?

    A successful project concludes with a clean, comprehensive handover. A disorganized data dump on the last day is a sign of a poor process. The final handover should be a curated package containing everything the design team needs to proceed with confidence, and everything the building owner needs for future archival.

    The essential items in a handover package are:

    1. Registered Point Clouds: The complete, organized set of indexed RCP/RCS files, along with the master E57 file for archival.
    2. Final BIM Model: The Revit model (RVT) delivered at the agreed-upon LOD (e.g., LOD 200–350).
    3. Registration and Control Reports: The PDF reports confirming the final accuracy and the coordinate system used.
    4. A Project "Read Me" File: A simple text document that explains the folder structure, file naming conventions, version history, and contact information for the scanning provider. It should also list any known exclusions or areas with limited data coverage due to access constraints.

    This complete package ensures that the value of the reality capture data persists throughout the project lifecycle and beyond.

    Where to go next

    A well-managed point cloud is the first step toward a successful renovation or retrofit project. Understanding the deliverables and processes involved allows you to ask better questions and specify better outcomes. Before beginning your next project, review the key questions architects should ask a Scan to BIM provider to ensure alignment on quality and organization from day one. To see examples of well-executed projects, browse the ZEALOT portfolio of work across various industries.

    Frequently Asked Questions

    Why does point cloud disorganization lead to Scan to BIM errors?
    Disorganization leads to practical failures in BIM software. Unstructured, oversized files cause Revit to lag or crash. Inconsistent coordinate systems result in misaligned model sections, making accurate modeling impossible. Without version control, teams may model from outdated scans, causing rework when clashes are discovered later.
    How should a point cloud data package be structured?
    A well-structured package uses a logical folder taxonomy (e.g., Raw Scans, Registered Cloud, BIM Model, Reports). Naming conventions should be consistent, identifying the project, date, area, and version. The final deliverable should be an indexed format like Autodesk's RCP/RCS, which is optimized for performance in design software.
    What is the role of coordinate systems in data management?
    A unified coordinate system is the single source of truth for a project's spatial data. It ensures that all point cloud sections, BIM models, and other survey data align perfectly. Failure to establish and maintain a shared coordinate system from the start is a primary cause of misalignment and modeling errors.
    How should large point clouds be split for optimal performance?
    For facilities over 80,000–120,000 sq ft, a single point cloud is unmanageable. The data should be split logically by building level, distinct zones, or building wings. This allows design teams to load only the necessary data into Revit, preserving workstation RAM and improving performance.
    What does a comprehensive point cloud QA checklist include?
    A QA checklist verifies data integrity before modeling. It includes reviewing the registration report for accuracy metrics (e.g., confirming ±5mm tolerance), visually inspecting the cloud for noise or gaps, checking for completeness against the project scope, and confirming the coordinate system is correctly applied.
    How is point cloud accuracy verified without re-running registration?
    Accuracy verification relies on the registration report provided by the scanning firm. This document contains statistical analysis of the alignment process, including point-to-point deviation and overall tension. You can also perform spot checks by measuring known distances between established control points within the point cloud.
    What should be in the final Scan to BIM handover documentation?
    The handover package should include the final registered point cloud (e.g., in RCP and E57 format), the completed Revit model at the specified Level of Development (LOD), the registration accuracy report, a list of any known data gaps or exclusions, and documentation of the project coordinate system.
