Data center 3D laser scanning
Mission-Critical & Colocation Facilities
In a live data center, the enemy is surprise. We scan operating facilities — white space, cooling plants, power rooms, underfloor and overhead pathways — at ±5mm without touching a single rack, so upgrades are engineered against reality and clashes die in the model instead of on the raised floor.
Common Applications
- Cooling upgrade and retrofit engineering
- Power infrastructure documentation
- Cable pathway and containment planning
- White-space capacity studies
- Underfloor and plenum documentation
- Migration and expansion baselines
Key Benefits
- Non-contact capture in live environments
- Eliminate field clashes before fabrication
- Verify clearances for new equipment delivery
- Reduce escorted-visit hours for outside engineers
- LOD 200–350 models for coordination
- Documentation for commissioning and audits
Featured Projects
200,000 sq ft Data Center MEP Model
LOD 350 Revit model of a live facility for a major cooling upgrade — 40+ field conflicts eliminated in clash detection, retrofit finished 3 weeks early.

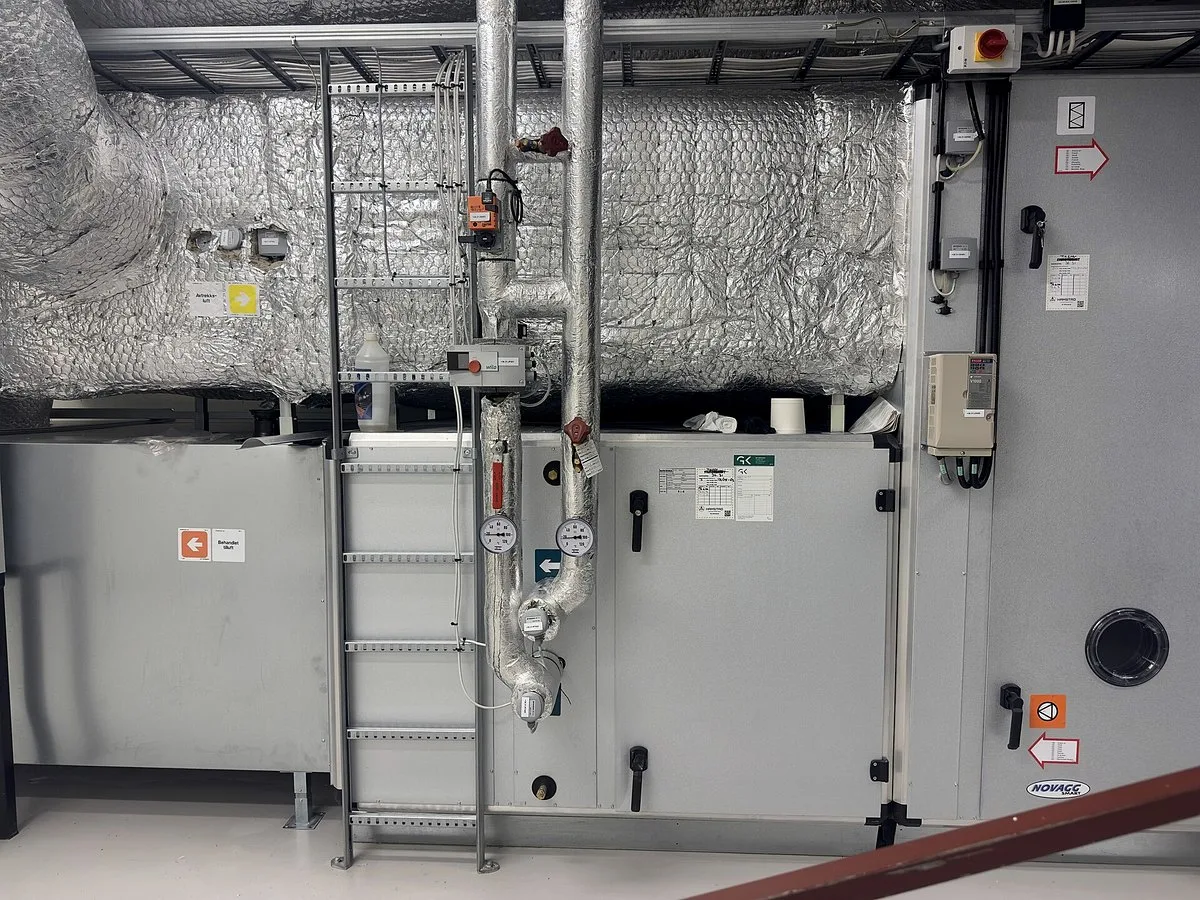

Mechanical Plant Capture
Chillers, pumps, and piping documented at survey grade for retrofit engineering.
Registered Facility Point Cloud
±5mm point cloud of dense infrastructure — the coordination baseline every discipline works from.
Data Centers Scanning FAQ
Common questions about data center 3D laser scanning
Related Services
Our data center 3D laser scanning services for your project
Complete Guide to Data center 3D laser scanning
Data center 3D laser scanning is risk management disguised as measurement. In a facility where minutes of downtime are measured in dollars per second, any retrofit — cooling upgrades, power distribution changes, containment additions — has to be engineered against exactly what exists. Drawings of mission-critical facilities age fast; every migration, every cabinet swap, every cable pull moves the building further from its documents.
ZEALOT Reality Capture scans live data centers with mobile LiDAR at walking pace: fully non-contact, no tripods in aisles, no interaction with racks or infrastructure, coordinated with your security and escort protocols. Capture covers white space, mechanical plants, electrical rooms, overhead pathways, and accessible underfloor conditions, all registered to one ±5mm coordinate system.
The payoff shows up in coordination. On a 200,000 square foot live data center, we delivered an LOD 350 Revit MEP model that let the engineering team run clash detection on a major cooling upgrade before fabrication — eliminating more than 40 field conflicts and finishing the retrofit three weeks ahead of schedule. In mission-critical work, every clash caught in the model is an incident that never threatened uptime.
Scan deliverables also compress the escort burden that slows data center projects. Outside engineers work from the hosted point cloud and panoramas instead of repeat badged visits; equipment vendors verify delivery paths and clearances remotely; commissioning agents get dimensional records tied to real coordinates. The facility's security posture improves precisely because fewer people need to be inside it.
ZEALOT Reality Capture serves enterprise, colocation, and edge facilities across Ohio, the Midwest, and nationwide from our Powell, Ohio base. If an upgrade, expansion, or documentation requirement is on your roadmap, contact us — we'll scope capture around your change-management windows and security requirements.
