The Preconstruction Problem
Every general contractor and preconstruction manager knows the scenario: you're bidding a renovation project, and the only existing documentation is a set of drawings from 1975 that may or may not reflect what's actually in the building today. You send an estimator to the site with a tape measure and a camera. They do their best, but they can't see behind walls, above ceilings, or into mechanical chases.
The result? Bids based on assumptions. And assumptions lead to change orders.
3D laser scanning gives preconstruction teams something they've never had before: a complete, measurable record of existing conditions captured before the first bid is submitted.
What Point Cloud Data Provides for Estimating

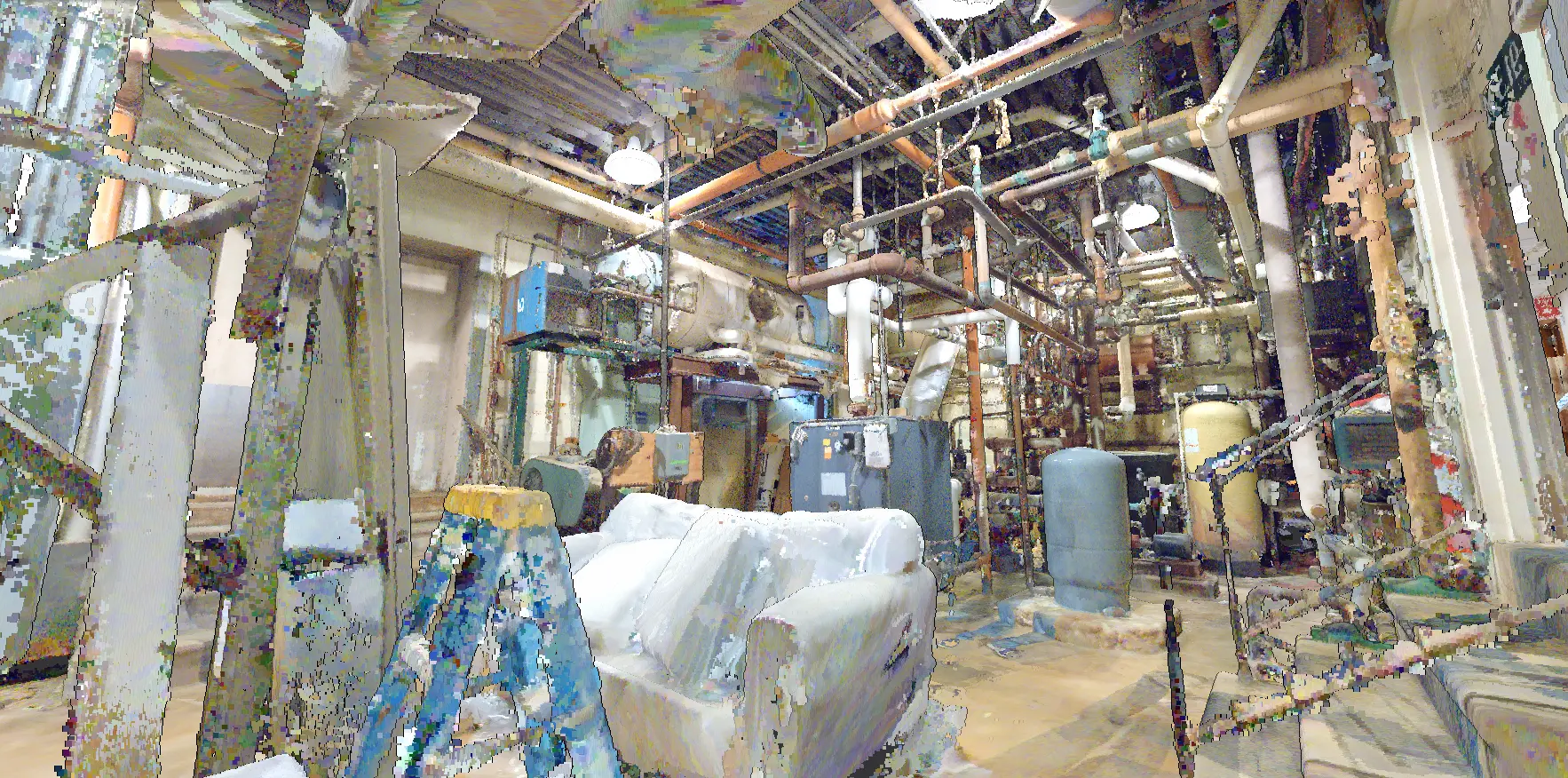

A point cloud is a dataset of millions of individual measurement points, each with a precise X, Y, Z coordinate. When captured by a LiDAR scanner, this data represents every visible surface in the building — walls, ceilings, floors, structural elements, mechanical systems, and more.
For preconstruction teams, this data enables:
Accurate Demolition Takeoffs
- Quantify interior demolition — measure the exact square footage of walls, ceilings, and flooring to be removed
- Identify structural elements that must remain versus non-load-bearing partitions that can be removed
- Measure volumes for debris removal and disposal estimates using volumetric scanning techniques
- Document existing finishes and materials that affect demolition methods and costs
Hidden Condition Documentation
- Above-ceiling conditions — identify existing ductwork, piping, conduit, and structural framing before demolition begins
- Mechanical system routing — understand where existing systems run, which affects both demolition scope and new system installation
- Structural irregularities — sloped floors, out-of-plumb walls, and non-standard framing that impact construction methods
Point cloud data doesn't eliminate every unknown in a renovation project. But it eliminates the unknowns that are visible and measurable — which, in our experience, accounts for the majority of change order-driving surprises.
Clash Detection Before Construction Starts
One of the most powerful applications of point cloud data in preconstruction is clash detection. By overlaying proposed design models onto the existing conditions point cloud, teams can identify conflicts before they become field problems:
- Proposed ductwork routing that conflicts with existing structural beams
- New partition walls that interfere with existing mechanical or electrical systems
- Equipment placement that doesn't fit within actual available space
- Ceiling height constraints that affect lighting, sprinkler, and HVAC design
Catching these clashes during preconstruction — not during construction — saves time, money, and frustration for everyone on the project. Our Scan to BIM services make this coordination possible.
Real-World Impact: Quantifying the Unknown
On a recent university building project, our scan data revealed several conditions that would have been nearly impossible to document with traditional methods:
- Floor elevations that varied by several inches across a single level — critical information for leveling new flooring systems
- Structural columns that were not on the grid shown in the original drawings
- Mechanical systems that had been significantly modified from what was documented
These discoveries, made before bidding, allowed the GC to price the work accurately and avoid the change orders that typically plague renovation projects. See our portfolio for similar project examples.
When Should Preconstruction Teams Request Scanning?
Scanning is most valuable when:
- Original drawings are missing or unreliable — common in buildings over 30 years old
- The scope includes significant demolition — accurate takeoffs require accurate as-built documentation
- Multiple trades need to coordinate in constrained spaces
- The project involves phased construction where existing operations must continue during renovation
- Budget certainty is critical — scanning reduces the risk premium that contractors add to bids for unknowns
The ROI of Scanning for Preconstruction
The cost of a 3D scan is typically a fraction of a single change order. When preconstruction teams invest in accurate existing conditions data upfront, they consistently see:
- Tighter bid spreads among subcontractors, because everyone is pricing from the same data
- Fewer change orders during construction
- Faster project timelines because construction teams aren't waiting for field verification
- Stronger owner confidence in the budget and schedule
